Rent a winnebago revel

2020 Revel Details - SLEEPS 2

Designed specifically for active outdoor enthusiasts, the all-new Winnebago® Revel takes a no-nonsense approach to adventure, with a straightforward design and function-driven features. Taking full advantage of the proven 4x4 Mercedes-Benz® Sprinter chassis, the Revel’s 3-liter turbo-diesel puts 325 lbs./ft. of torque through an on-demand 4WD system, complete with high/low range mode for added off-road capability. Inside, the Revel’s unique features start with a floorplan designed around a 140-cu. ft. gear garage with a power lift bed. A full galley, including a 2.5-cu. ft. compressor refrigerator, makes meal prep a breeze, while the all-in-one wet bath and gear closet boasts a cassette-style toilet that eliminates the need for a separate black water holding tank. Add a standard 200-watt solar power system, diesel-powered heating, a dinette with a pull-up table that converts to additional sleeping space, and many more innovative features and the result is the new Revel: quite simply the most off-road capable RV Winnebago has ever built.

Length 19'5"

Exterior Height1 9'10"

Exterior Width 7'1"

Awning Length 10'

Interior Height 6'3"

Interior Width 6'7"

Freshwater Tank Capacity2 (gal.) 21

Water Heater Capacity (gal.) Continuous

Cassette Toilet Capacity2 (gal.) 5

Holding Tank Capacity - Gray2 (gal.) 21

LP Capacity3 (gal.) NA

Fuel Capacity (gal.) 24.5

GCWR4 (lbs.) 13,550

GVWR (lbs.) 8,550

GAWR - Front (lbs.) 4,101

GAWR - Rear (lbs.) 5,360

Wheelbase 144"

Seating Capacity 4

AC/DC load center/converter

Auxiliary start circuit

3 deep cycle Group 31 batteries (AGM maintenance free)

Coach battery disconnect system

Dual-battery charge system

30-amp. power cord

Exterior AC receptacles

Exterior DC receptacles

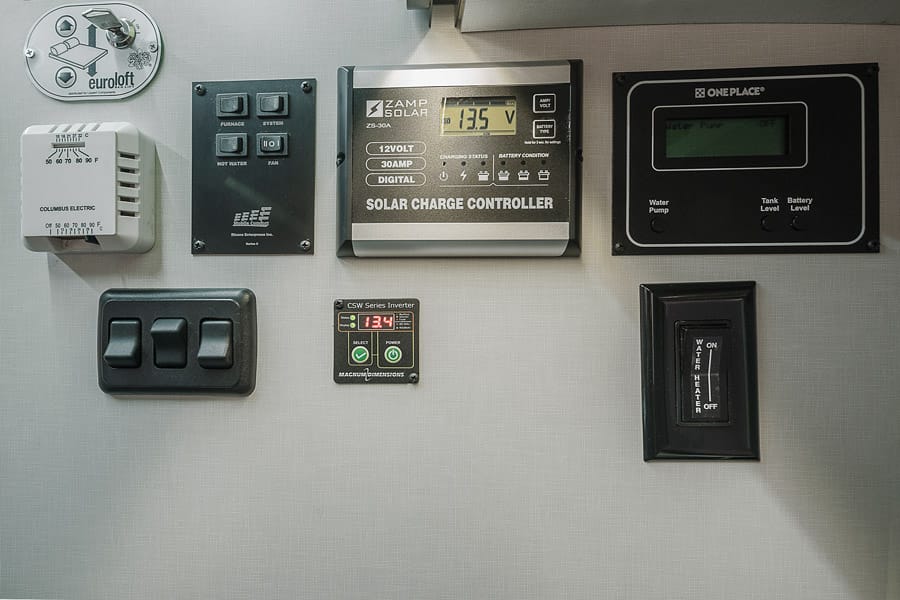

Solar panel battery chargers

2,000 watt AC/DC inverter
